Getting Started

From nothing to your first AI-built feature in about fifteen minutes: start a trial, install the add-in for your CAD system, open the desktop agent, sign in, and run a prompt whose result you can verify.

Already have an account? Skip to step 2. Your administrator may have installed the add-in for you already — open your CAD system and look for SphereHarness.

1. Start a trial (or get a seat)

Go to Start your free trial. The trial runs for a set number of days — the sign-up page says how many — with a seat on each CAD system you tell us you use, and you bring your own AI key: your AI provider bills you directly, so no card is needed to begin.

Every trial is approved by our team. Creating the account sends a trial request; the page then says “Thanks - your trial request is waiting for approval. We'll email you when it's approved.” Until it is approved you cannot sign in to the portal or the desktop agent (both show that same message), and no licence is active. The approval email carries the sign-in and download links, and the trial's days count from that day. People invited by their company or by a partner do not wait: their account is ready when they accept the invitation.

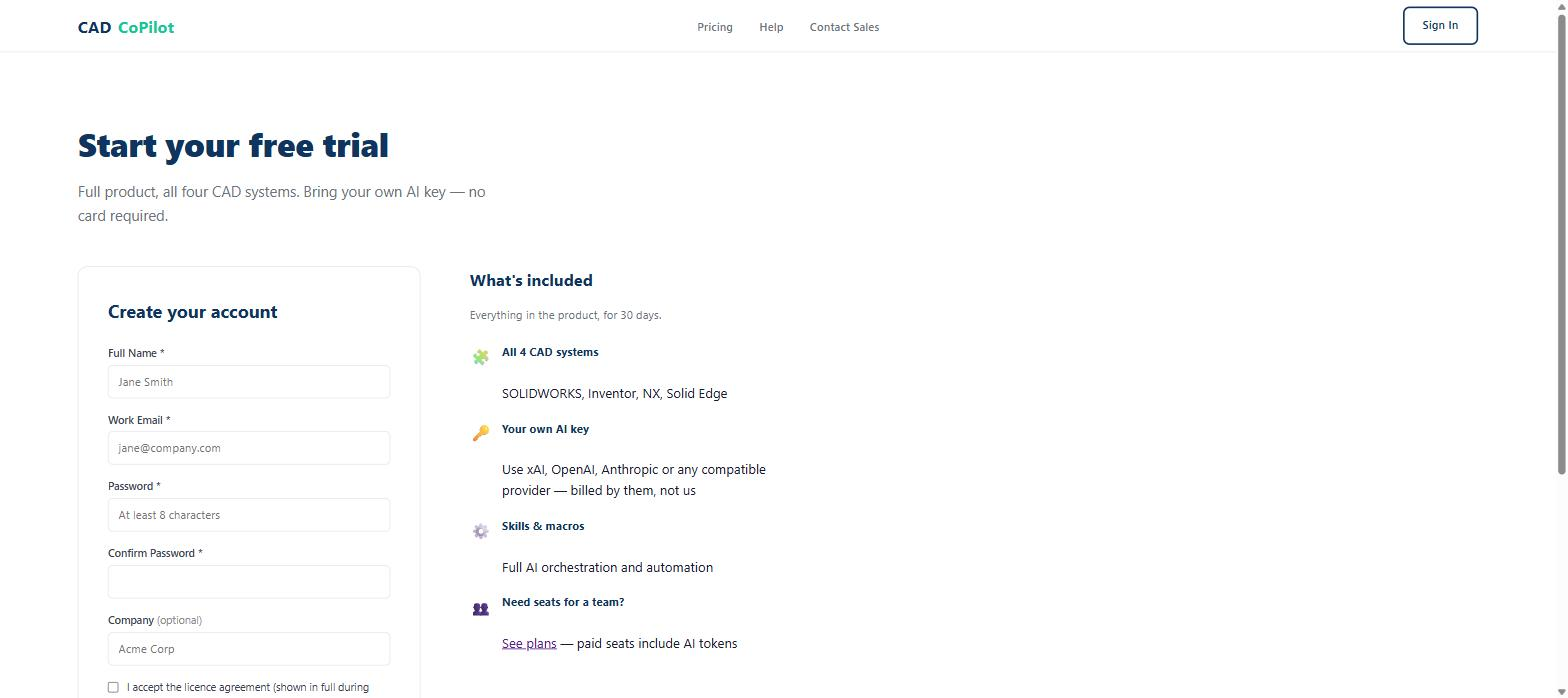

The SphereHarness trial sign-up form asking for name, work email, password and company
The trial sign-up form. You must accept the licence agreement, which includes the clause making verification of AI-produced geometry your responsibility — see Verifying Results.
  1. Fill in your name, work email and a password, tick the CAD software you use (at least one), then press Request my trial. The desktop agent's Register link asks the same question.

  2. Verify your email. A message arrives with a confirmation link. The account stays locked until you click it — if nothing arrives within a few minutes, check your spam folder before requesting another.

  3. Wait for the approval email. It tells you the trial has started and links to the sign-in and the downloads.

  4. Sign in to the organization portal to see your licence, seats and settings.

If your company buys seats instead, an administrator invites you and you receive an invitation email; your seat is already set up when you first sign in. SphereHarness is licensed per CAD system, per user, and the AI is your own choice (the optional server AI has its own token allowance) — the prices are on the pricing page and how licences, seats and trials work is on Licences and pricing.

2. Install the add-in for your CAD system

Each CAD system has its own installer, and you get them from Downloads in the portal (Downloads). Close the CAD application before installing, then start it again afterwards. What you get is a SphereHarness ribbon tab (or panel) with a small set of commands — the one you want first is Open Desktop Agent.

Every installer carries the desktop agent and the shared files as well as the add-in, so installing for a second CAD system reuses them rather than giving you a second agent. See Installing SphereHarness.

CAD systemWhere SphereHarness appearsDetailed page
Autodesk InventorSphereHarness ribbon panelInventor
Siemens NXSphereHarness ribbon tabNX
Solid EdgeSphereHarness ribbon tab (icon-only buttons — hover for the name)Solid Edge
AutoCADSphereHarness ribbon tab, or the COPILOT commandAutoCAD
If the button or tab is missing after installing, restart the CAD application once more — several of them only register add-ins at start-up. If it is still missing, see Troubleshooting.
The chat is not inside the CAD window. It lives in the desktop agent — a small floating balloon that sits above whatever you are working in and talks to every CAD system you have running. The ribbon button opens it, and after that Ctrl+Alt+Space brings it up from anywhere.

3. Sign in

Click Open Desktop Agent on the ribbon. The agent starts in the system tray and its balloon appears; sign in with the email address and password for your organization account — the same credentials as the web portal.

Was your CAD system already running when you signed in? Click Reconnect to Desktop Agent on its SphereHarness ribbon (in AutoCAD: Reconnect). It picks up your sign-in and reconnects that session to the agent, without restarting the CAD, and a small window tells you what it found — Connected - signed in as ..., or why not.

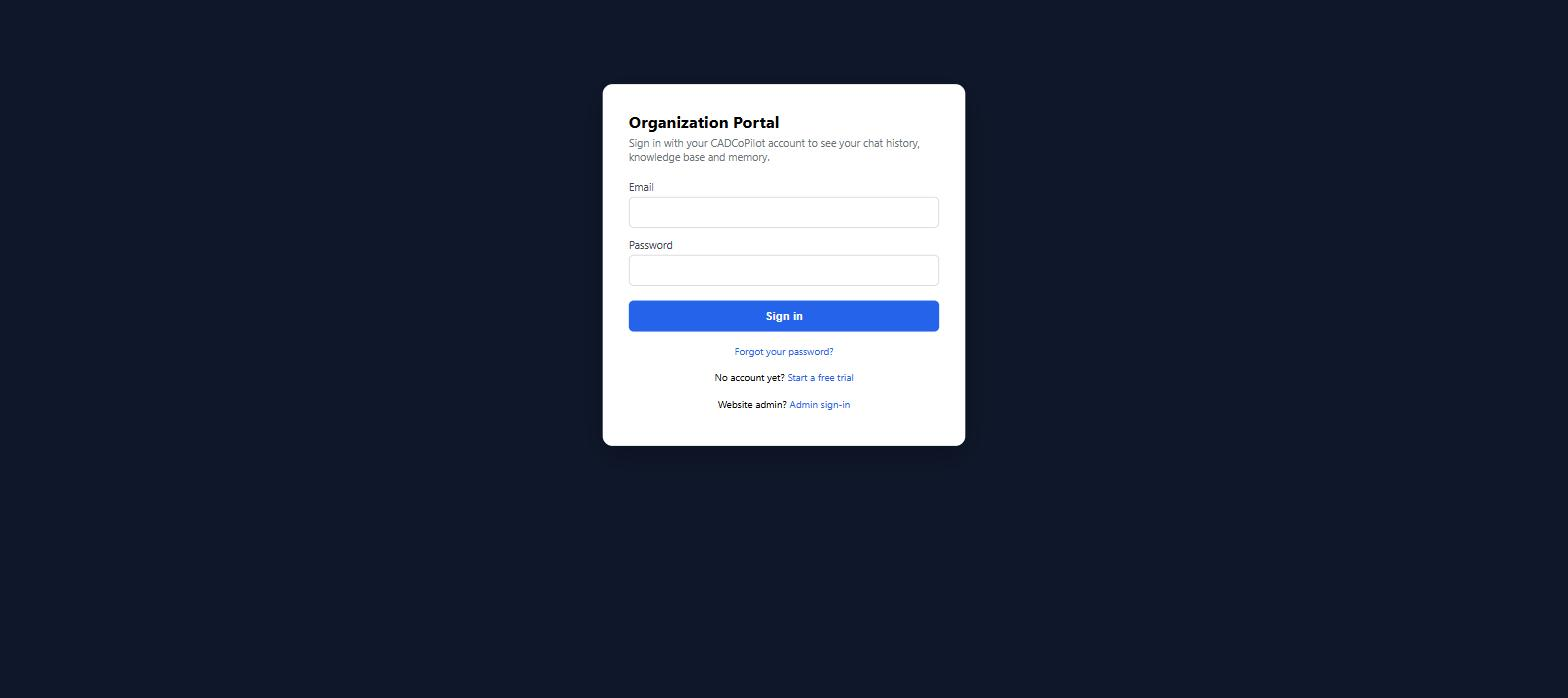

The SphereHarness organization portal sign-in form
The same account signs you in to both the add-in and the organization portal.

If your organization runs its own server, enter its URL in Settings first. See Sign In & Out for switching accounts.

4. Choose your AI and check you are connected

Unless you choose the optional SphereHarness server AI, SphereHarness does not run AI on its servers: the desktop agent talks straight to the AI you choose. The first time you open the chat it offers two choices — Your own AI key (a key from OpenAI, Anthropic, DeepSeek, Google, xAI or another compatible provider, stored encrypted on this PC) or a Coding agent on this PC (a coding agent installed and signed in on your PC, such as Claude Code, Codex or Gemini CLI, under your own agreement with its vendor). You can change it later in the AI drop-down above the input box; see The Desktop Agent.

Hover the tray icon: it reports starting, connecting, connected, stopped or not signed in. The dot at the bottom-left of the balloon tells you about the CAD side — hover it for CAD sessions healthy or No CAD session connected.

A trial and a paid seat work the same way: the chat runs once you have chosen your own key or a coding agent (your AI provider bills you directly) or, where it is offered to your account, the optional SphereHarness server AI, which has a free token allowance (how tokens work). Where your data goes: What goes where.

5. Your first prompt

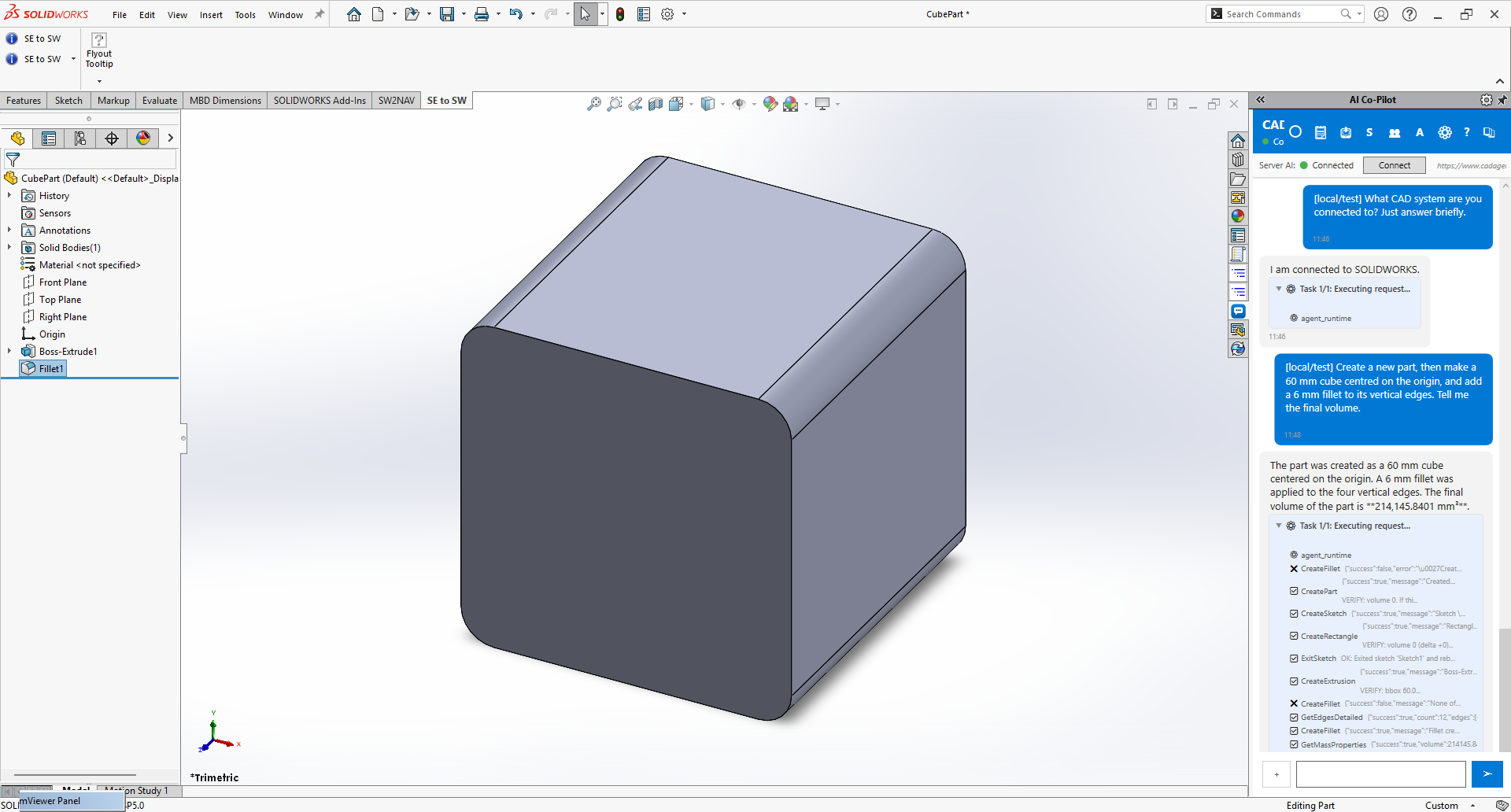

Type a request in the agent and press Enter. SphereHarness performs the operations in your open CAD document and reports each step. Start with something whose answer you can check by hand:

Create a new part, then make a 60 mm cube centred on the origin, and add a 6 mm fillet to its vertical edges. Tell me the final volume.

Check the number rather than trusting it. A 60 mm cube is 216,000 mm³. Rounding four vertical edges at R6 removes r² − πr²/4 = 7.73 mm² of cross-section each, over 60 mm of height — about 1,854 mm³ in total. 216,000 − 1,854 = 214,146 mm³, which matches. That habit — predict, then compare — is the single most valuable one when working with an AI assistant, and it is covered properly in Verifying Results.

6. A few more to try

What is the volume and bounding box of the current part?

Read-only queries are the safest way to get a feel for how SphereHarness reads your model.

Add a 10 mm through hole at the centre of the top face.

Name the face and the position. If a request is ambiguous, SphereHarness asks rather than guessing — answering the question is faster than undoing a wrong feature.

Create a drawing of this part with front, top and isometric views, then dimension the overall width.

See Drawings & Dimensions for the full range of views, dimensions and annotations.
